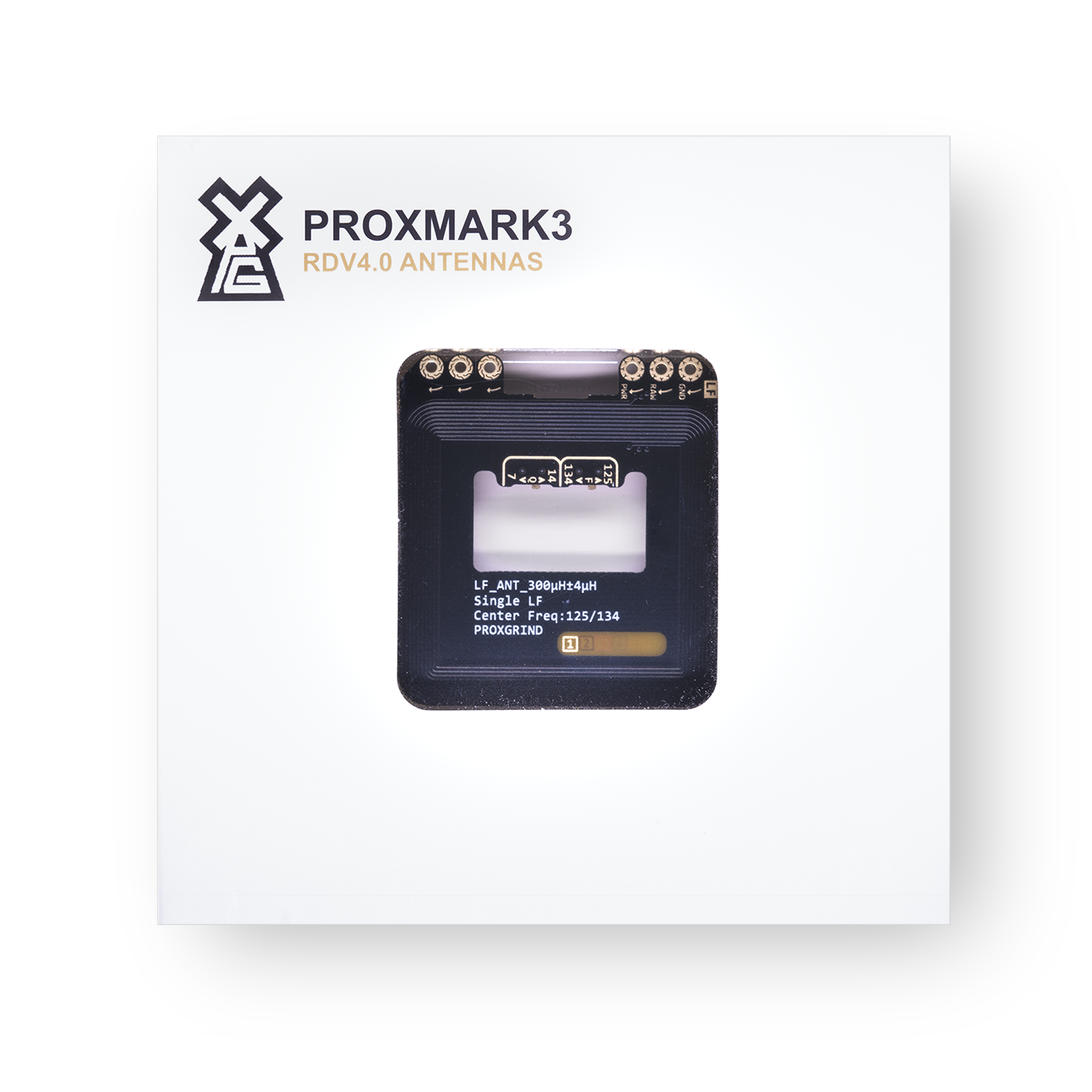

The Proxmark3 RDV4 LF Antenna Set comes with a LF medium antenna and LF long range antenna. The Proxmark3 RDV4 has a modular antenna system, allowing for antennas to be swapped depending on your engagement and distance requirements.
Each antenna is a 6 layer PCB, having 6 overlapping coils. Toggle switches for frequency and Q value depending on your target/scenario.

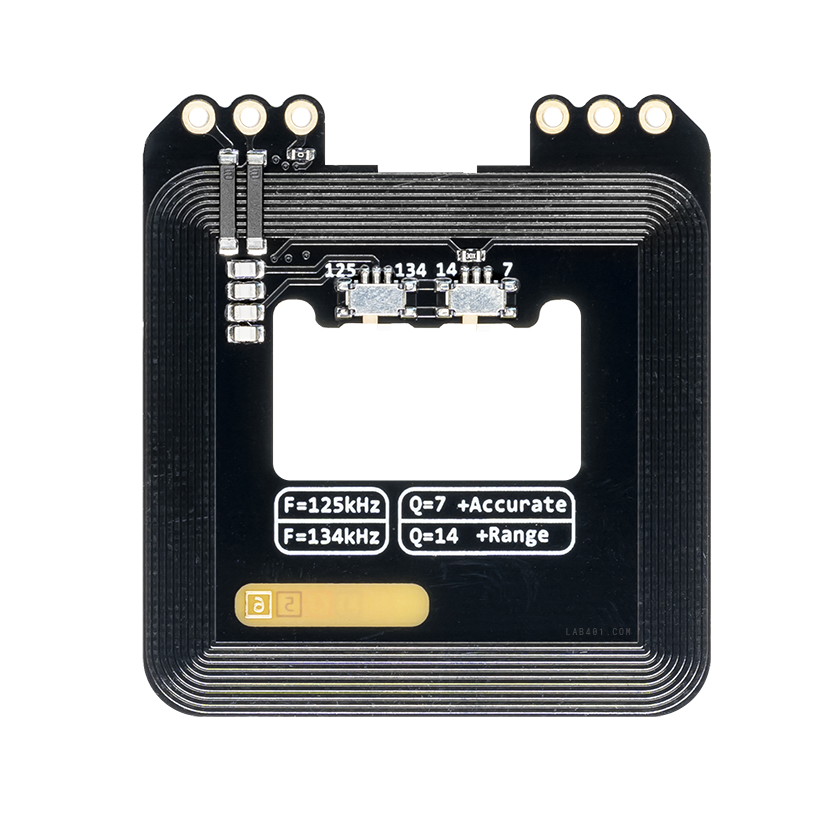

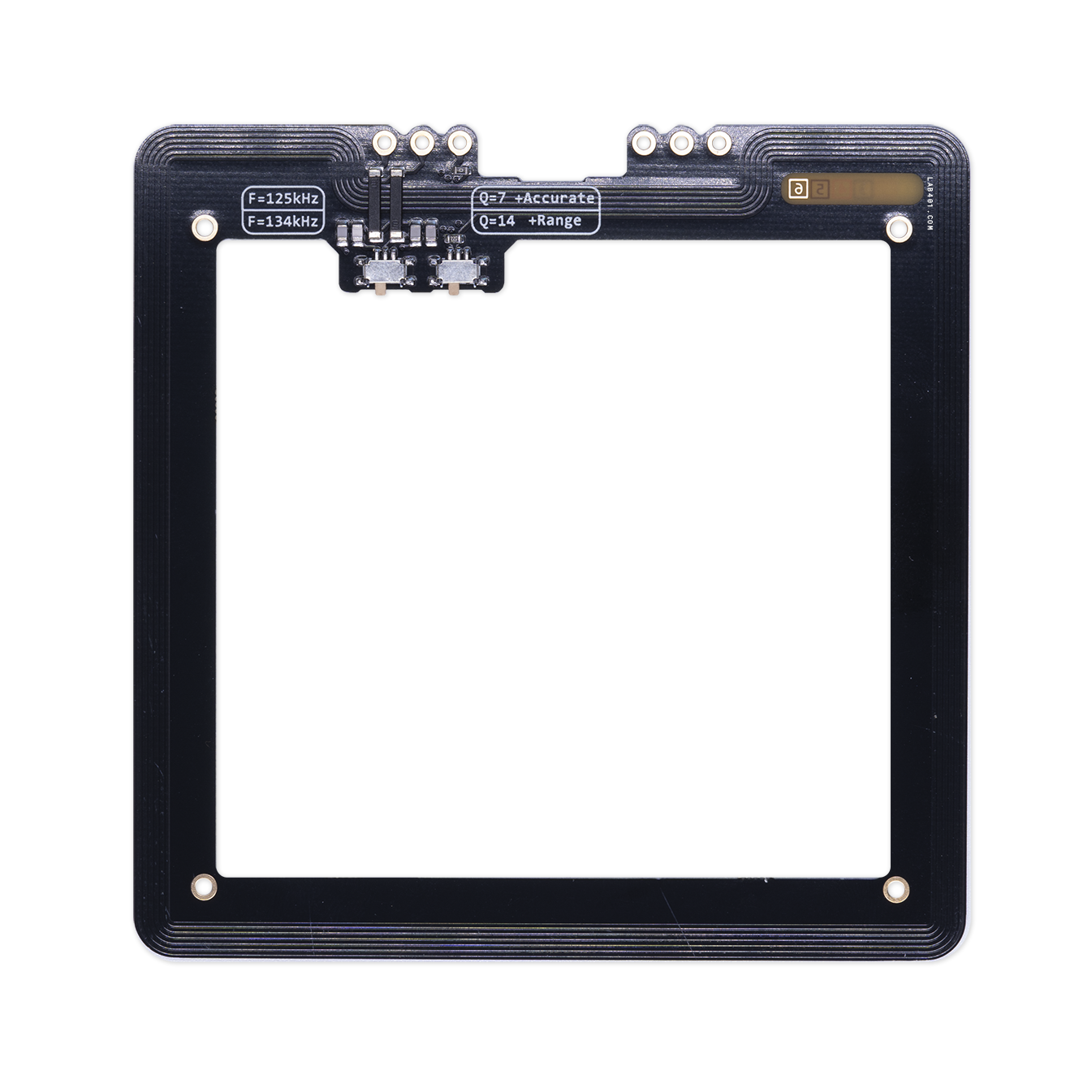

Switch options:
Q 7 = Better accuracy when dumping card data
Q 14 = Better range distance
F 125 = Improved 125kHz tag range
F 134 = Improved 134kHz tag range
Feature
Antenna Type
Read Distance
LF Standard Antenna (Built-in)
40 - 85mm
LF Medium Antenna (Fits in case)Â
66 – 98mm
LF Long Range Antenna
66 – 133mm
Â
WHAT'S INCLUDED

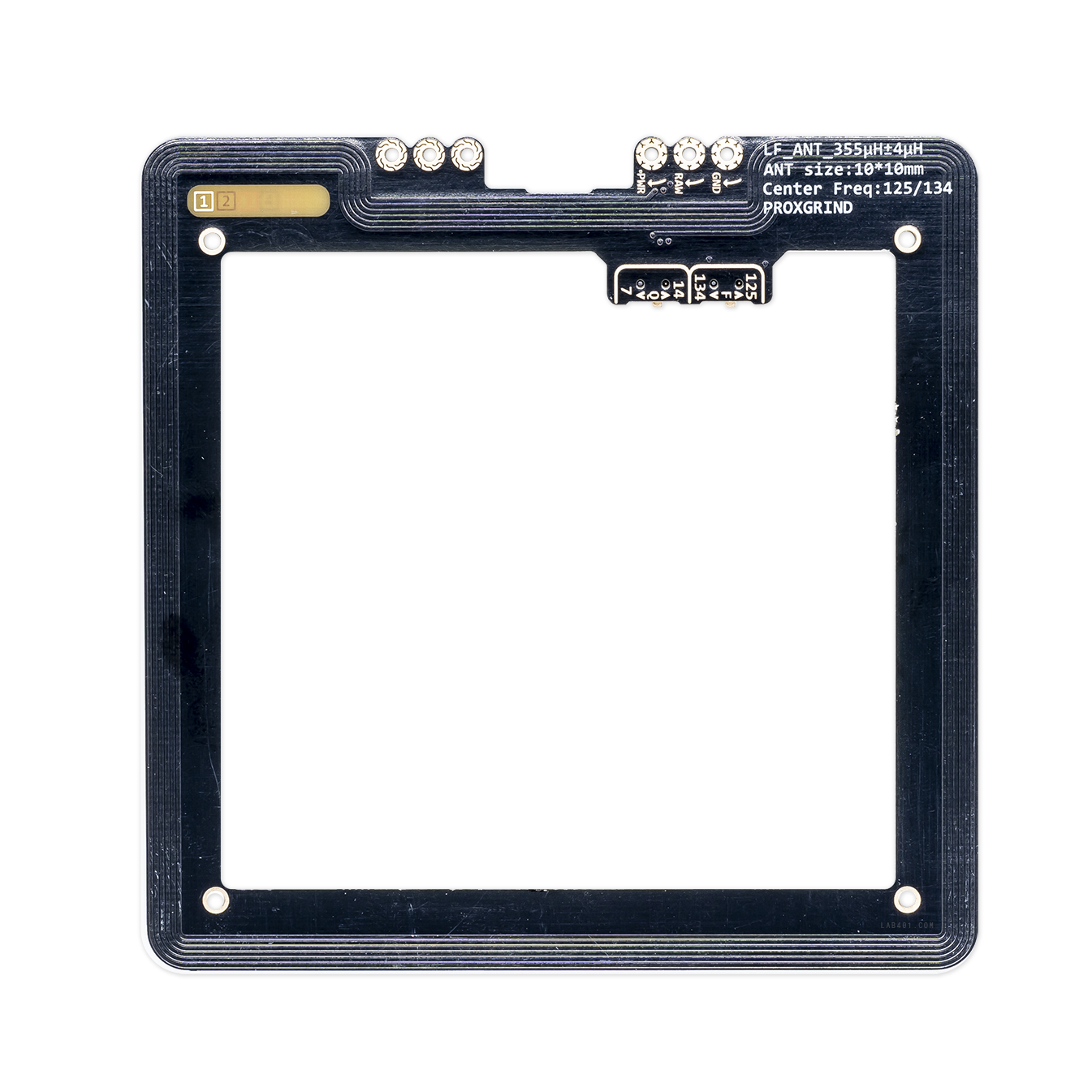

1x Long Range Antenna

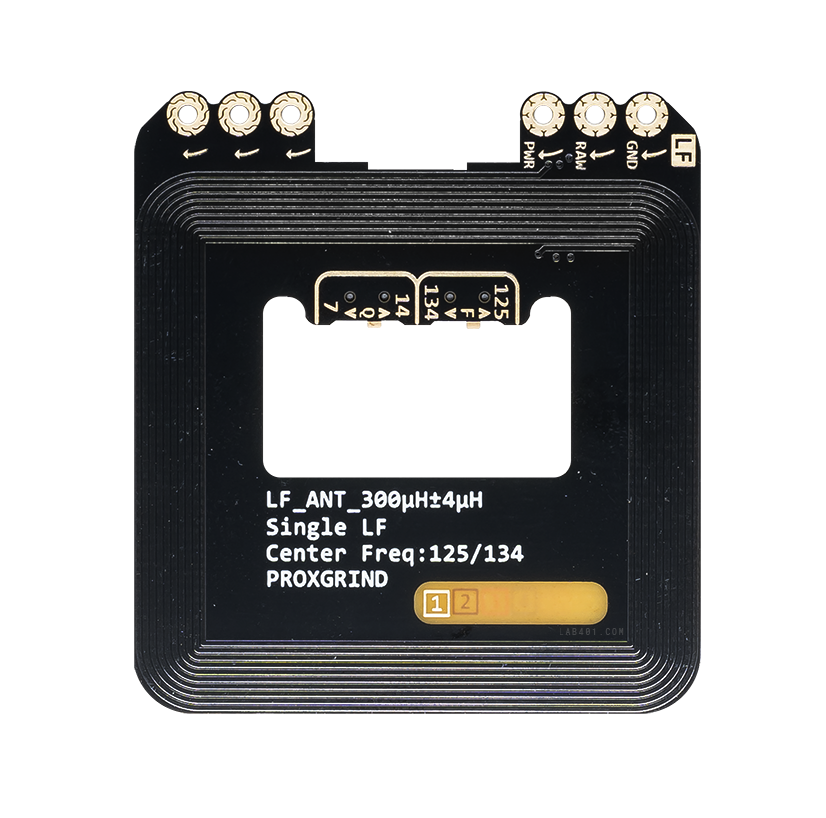

1x Medium Range Antenna
NOTE: Proxmark3 RDV4 is not included. Proxmark3 RDV4.01 is recommended.
