Proxmark3 RDV4.01

The Proxmark3 is the ultimate RFID platform for pentesters and researchers.
Powerful, Portable, Wireless: Clone / Crack / Sniff / Emulate / Understand.

INTRODUCTION

The Proxmark3 is a dedicated, highly-capable multi-tool for RFID analysis, providing reading, writing, analysis, snooping, replaying, emulation, modulation, demodulation, decoding, encoding, decryption, encryption for any RFID system operating in the 125KHz, 134KHz and 13.56MHz frequencies.

Since its original creation in 2007, there have been huge leaps in the electronics field. The Proxmark3 RDV4.01 is a fully revised, modernised version of the already powerful RDV2.

This is the 4.01 version of the device which includes multiple improvements over the 4.0 version, including:

• Reduced power supply noise
• Gold-plated FPC Connector

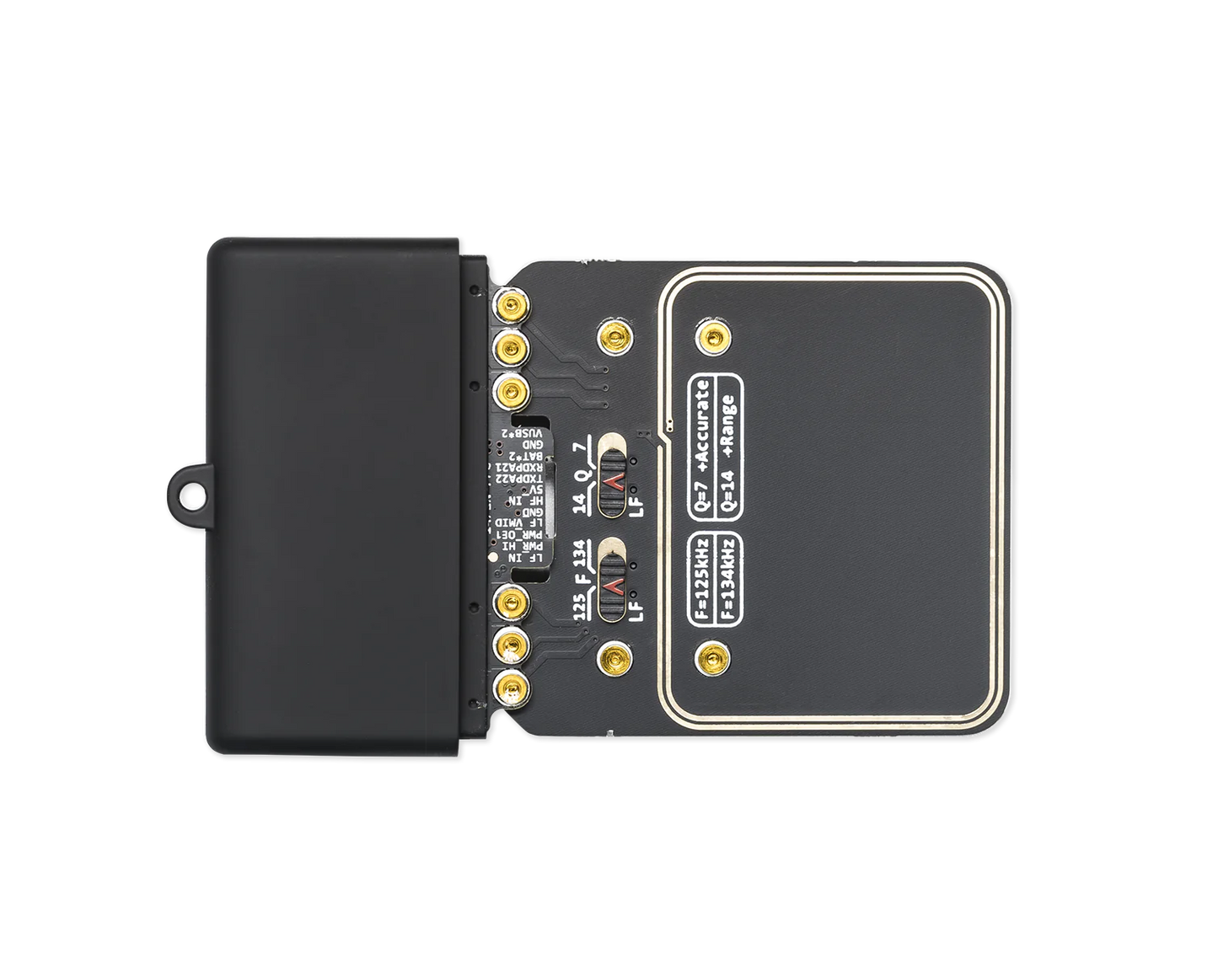

• Antenna "Q-Switch" allowing for adapting antennas to specific operations
• Antenna Frequency Switch allowing for optimised 125KHz and 134KHz performance

OVERVIEW

The Proxmark3 RDV4.01 is the latest revision of the Proxmark3 Platform. It is designed and manufactured by RFID Research Group (RRG), a company formed by four people instrumental to the Proxmark3 including:

• Chris Hermann (iceman) - Moderator of the proxmark forums
• Kevin (0xFFFF) - Moderator of the proxmark forums

The RDV4.01 revision represents a highly optimised piece of hardware specifically designed for the pen-testing community:

• Covert: Fits easily into a hand and pocket

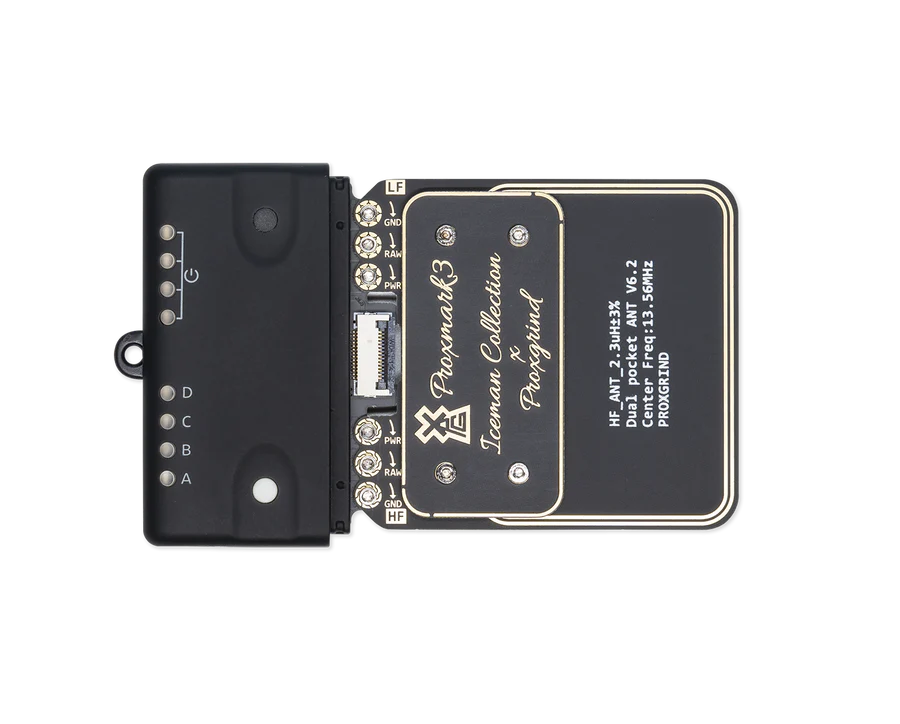

• Modular: Rapidly switch pre-tuned antennas for more range when in the field
• Intuiative: Multiple Status LEDs for at-a-glance status checking
• Android Compatible: Works with Walrus Android App for automated red-teaming
• Expandable: BLE/Wifi module expansion capability for automated data egress

IMPROVEMENTS

The RDV4 has been designed and optimised for penetration testing, where performance and discretion are utmost priorities.
Below is a non-exhaustive list of improvements over the Proxmark3 RDV2.
