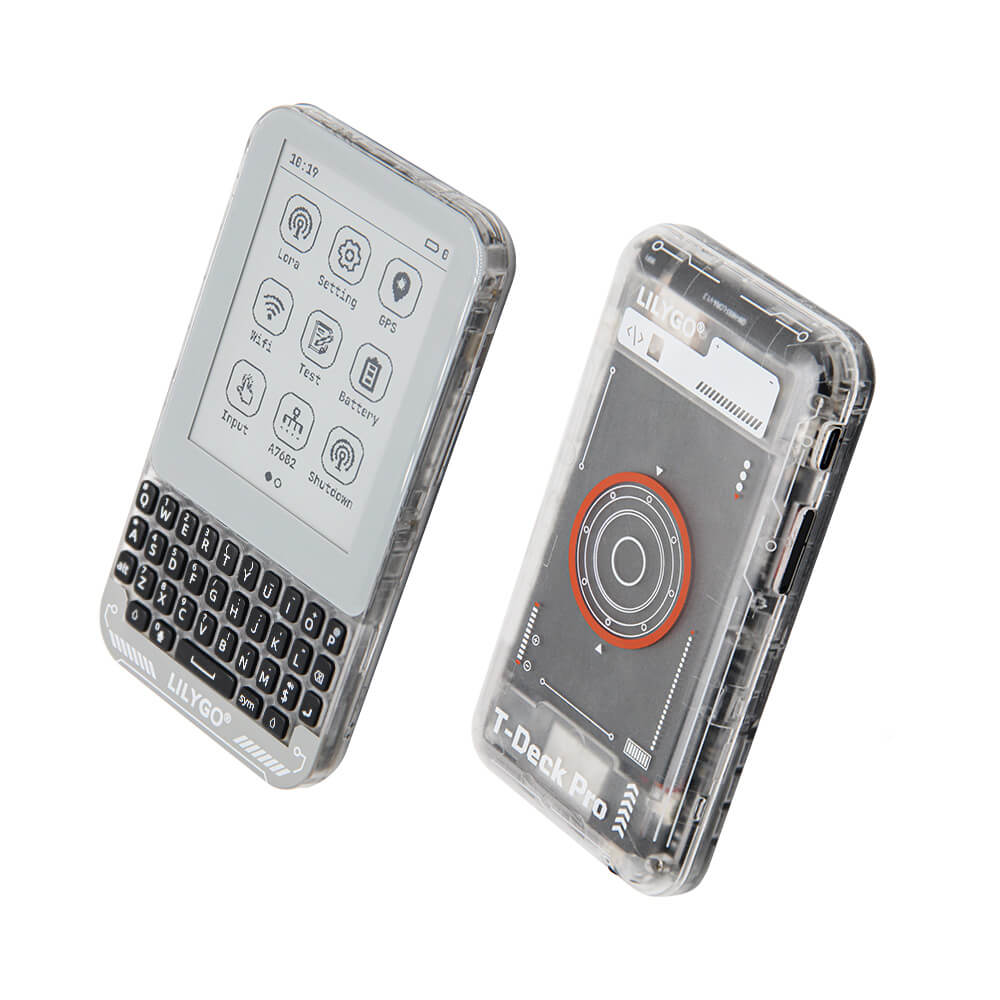

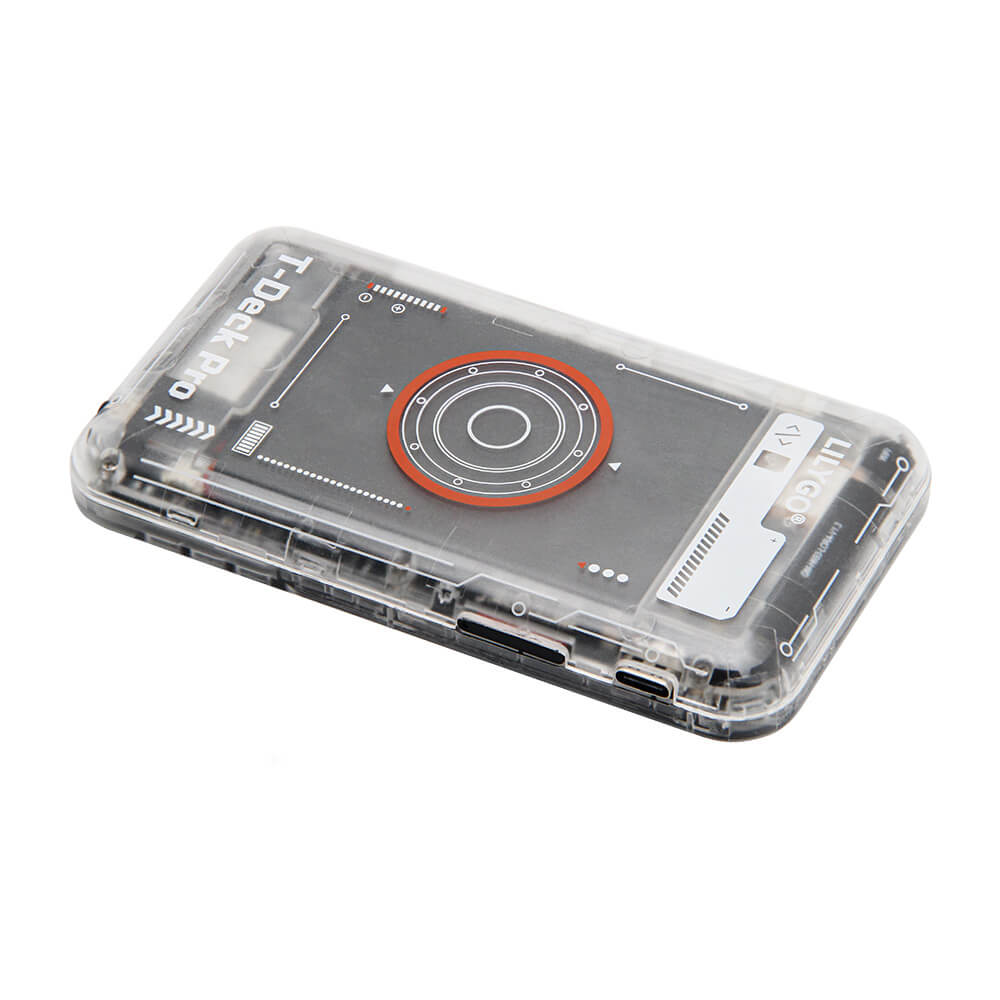

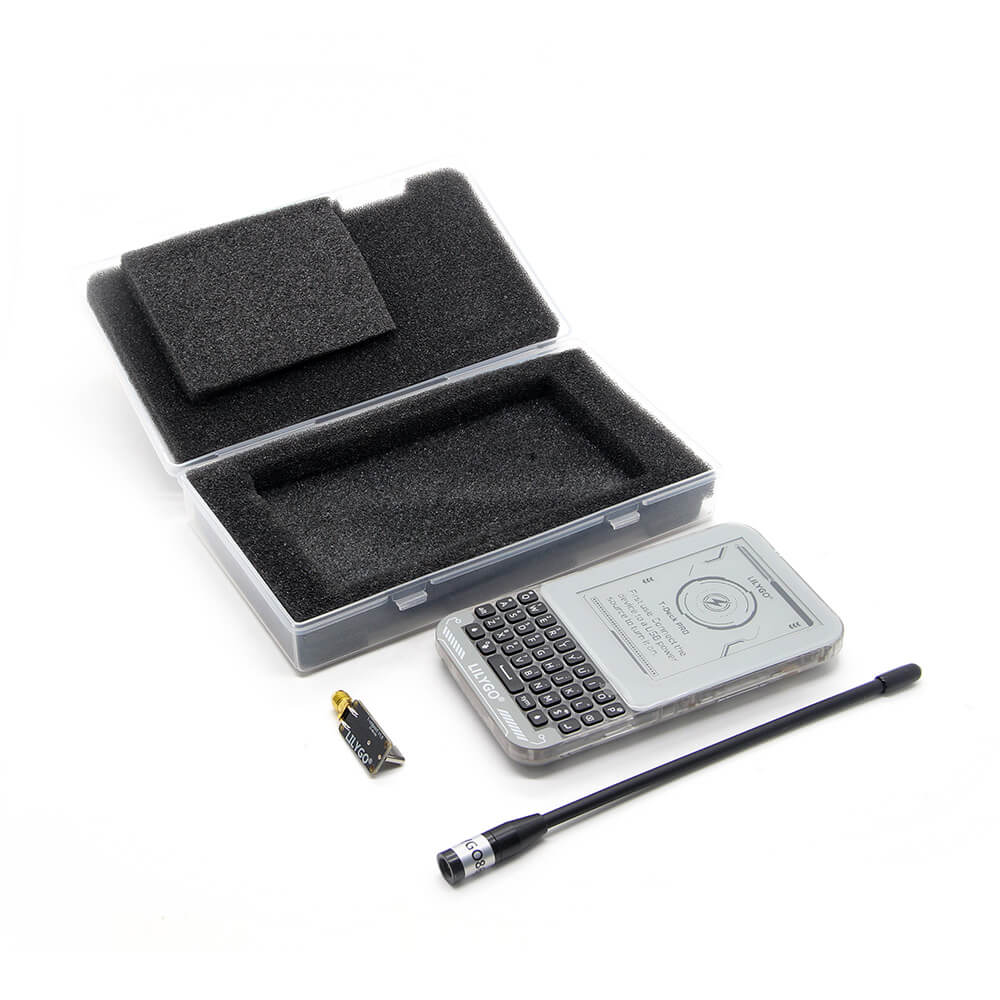

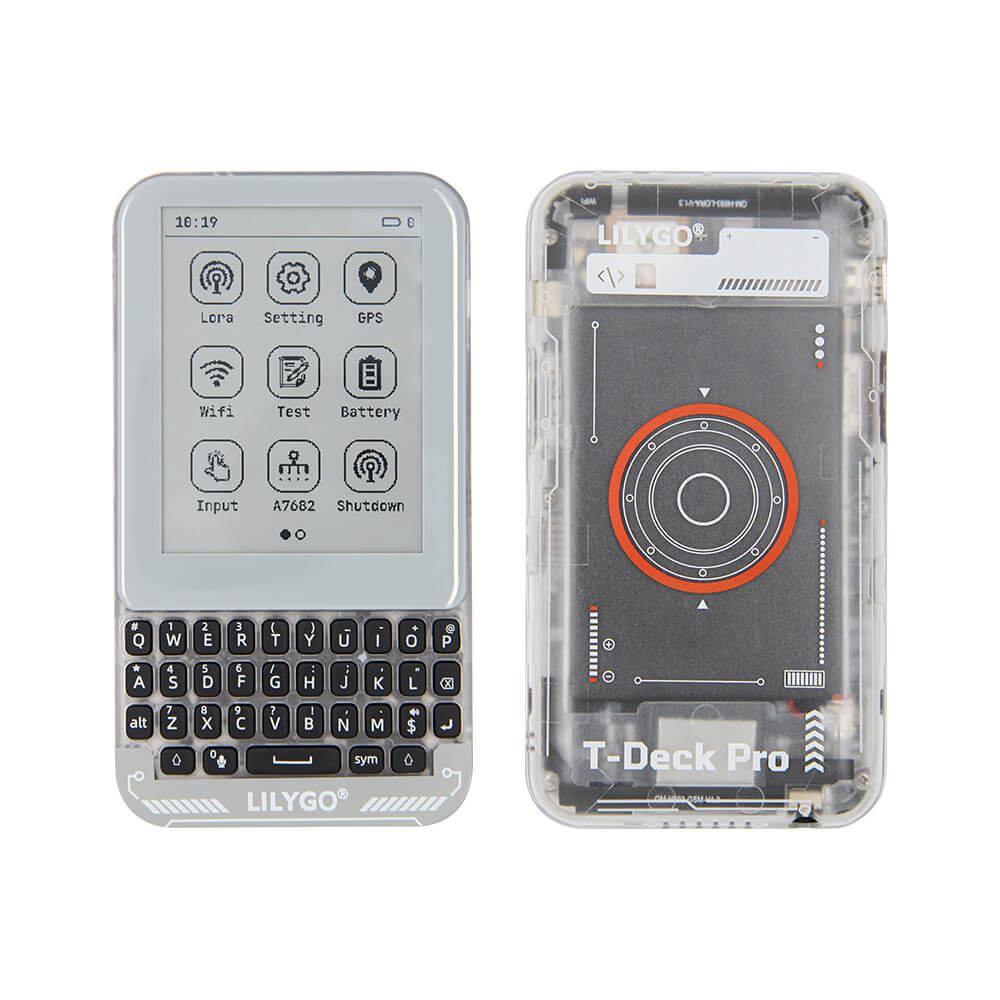

T-Deck Pro - Voice 915 MHz - with External Antenna

T-Deck Pro - Voice 915 MHz - with External Antenna

$250.00 AUD
$250.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Open-Source Dev Board meets keyboard and touchscreen

LILYGO Factory Firmware

T-Deck Pro Highlights at a Glance

  • 4G module
  • Bosch BHI260AP Self-Learning AI Smart Sensor with Integrated IMU
  • 3.1-inch e-paper touch screen
  • PMU chip
  • 3.5 headphone jack
  • Extended Qwiic function module interface

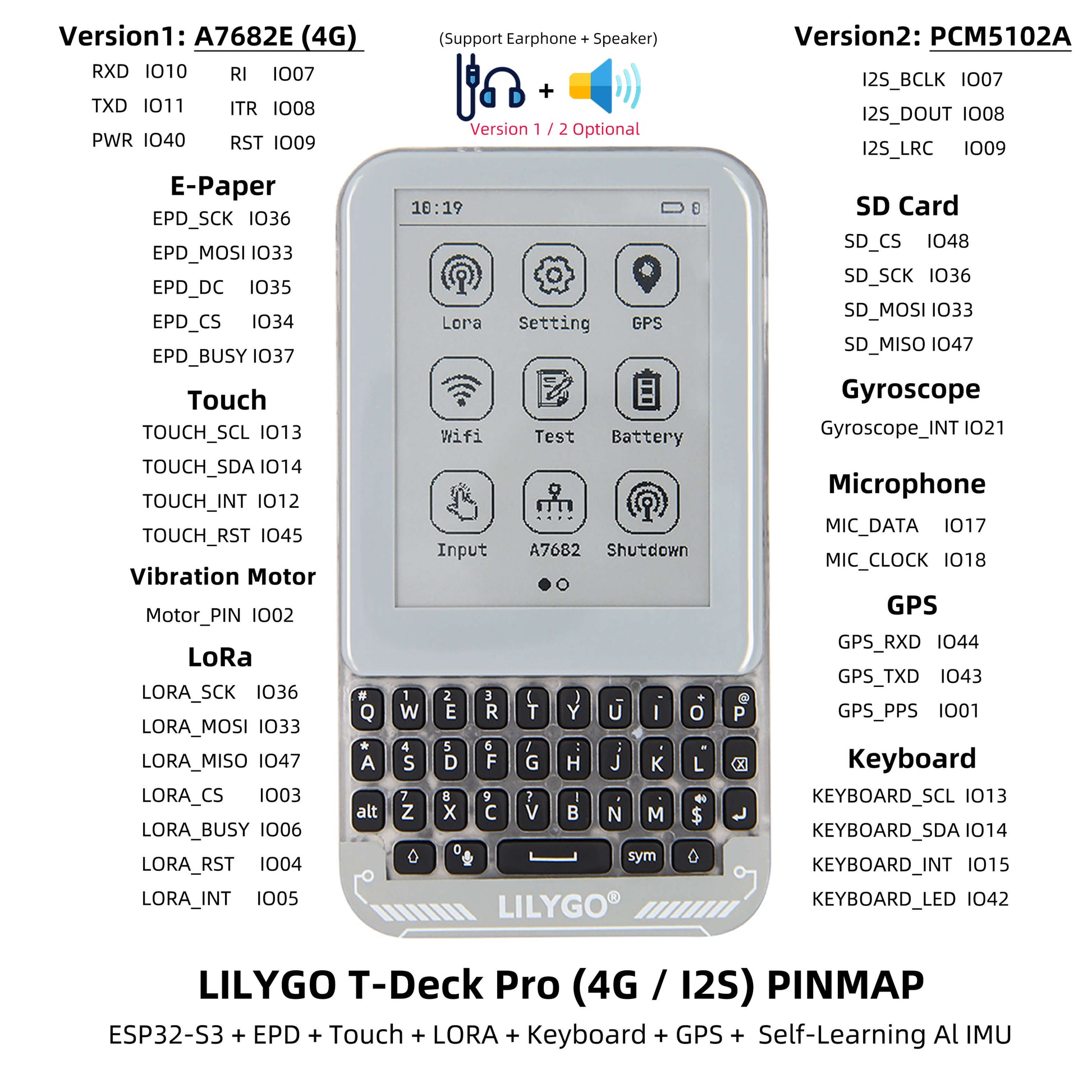

To meet different needs, T-Deck pro is divided into 2 versions "A7682E (4G)" and "PCM5102A (Voice)".

The main difference between the PCM5102A and the A7682E 4G is the voice function: The audio of the A7682E 4G version can only be driven based on the A7682, while the PCM5102 version can be driven directly through the ESP32-S3.

Note: This T-Deck Pro comes with PCM5102A (Voice).

Specifications


MCU		 ESP32-53FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi, Bluetooth 5 (LE)
Development Arduino, Platform0-IDE, ESP-IDF
Option A7682E / PCM5102A
Flash 16MB
PSRAM 8MB
Onboard functions GPS, TF Card, Microphone, Speaker
Lora Chip SX1262
Battery (Built-in) 1400 mah



3.1 inch E-Paper Ultra Wide Viewing Low Power

 Resolution 320x240
Drive Chip GDEQ031T10



Flash Firmware with Meshtastic UI:

  1. Connect the T-Deck Pro to your computer using a USB-C cable
  2. Turn on the T-Deck Pro. There will be nothing shown on the display.
  3. Visit https://flasher.meshtastic.org/
  4. Select T-Deck Pro as the target device
  5. Click on Flash and make sure to do a Full Erase and Install and enable the Meshtastic UI. Select your device in the pop-up.
  6. Turn your T-Deck Pro off and on to use the new UI.
  7. Select your region and pick your name.
