LILYGO

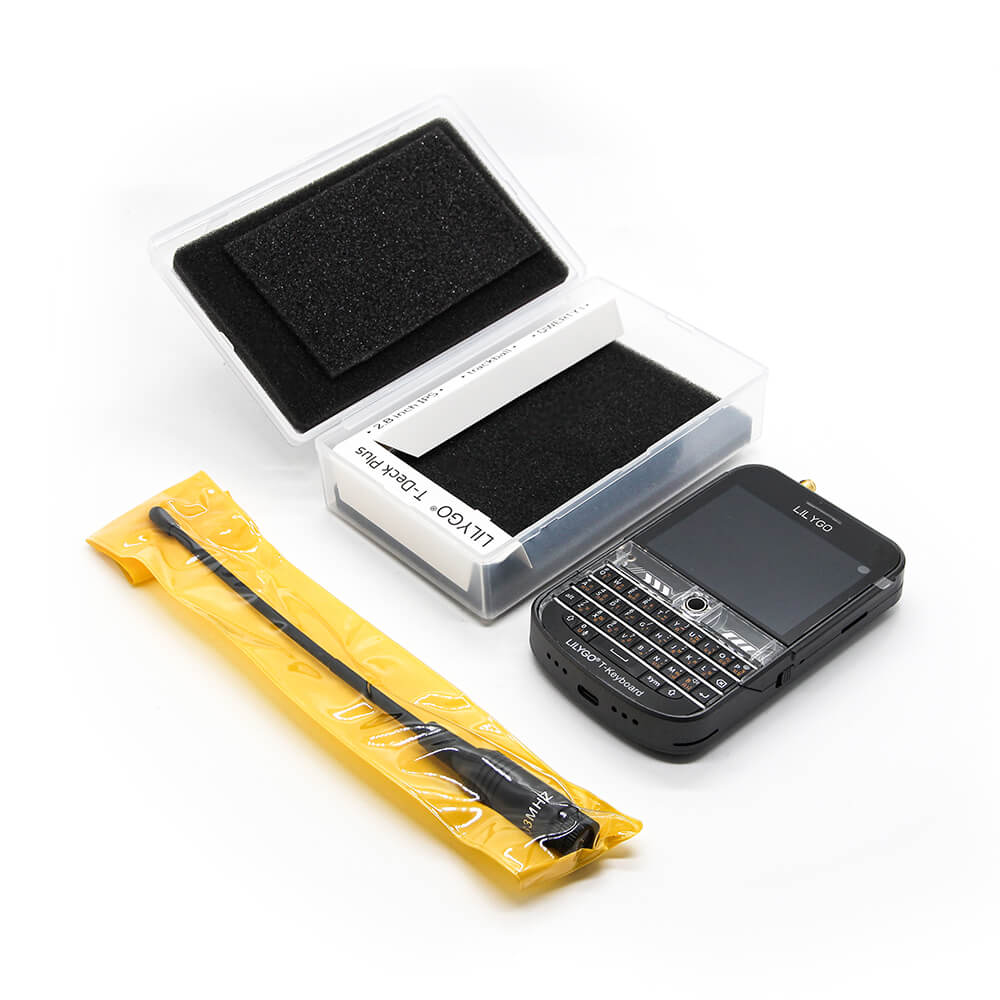

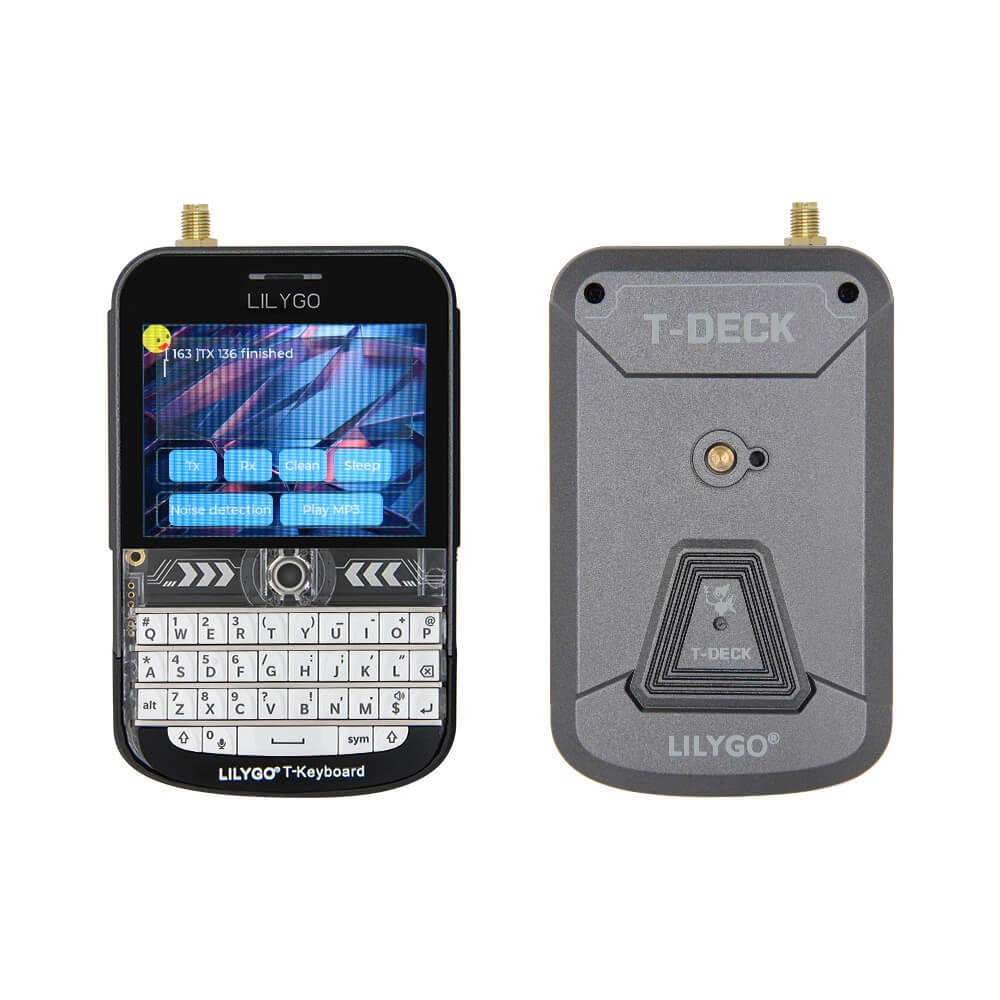

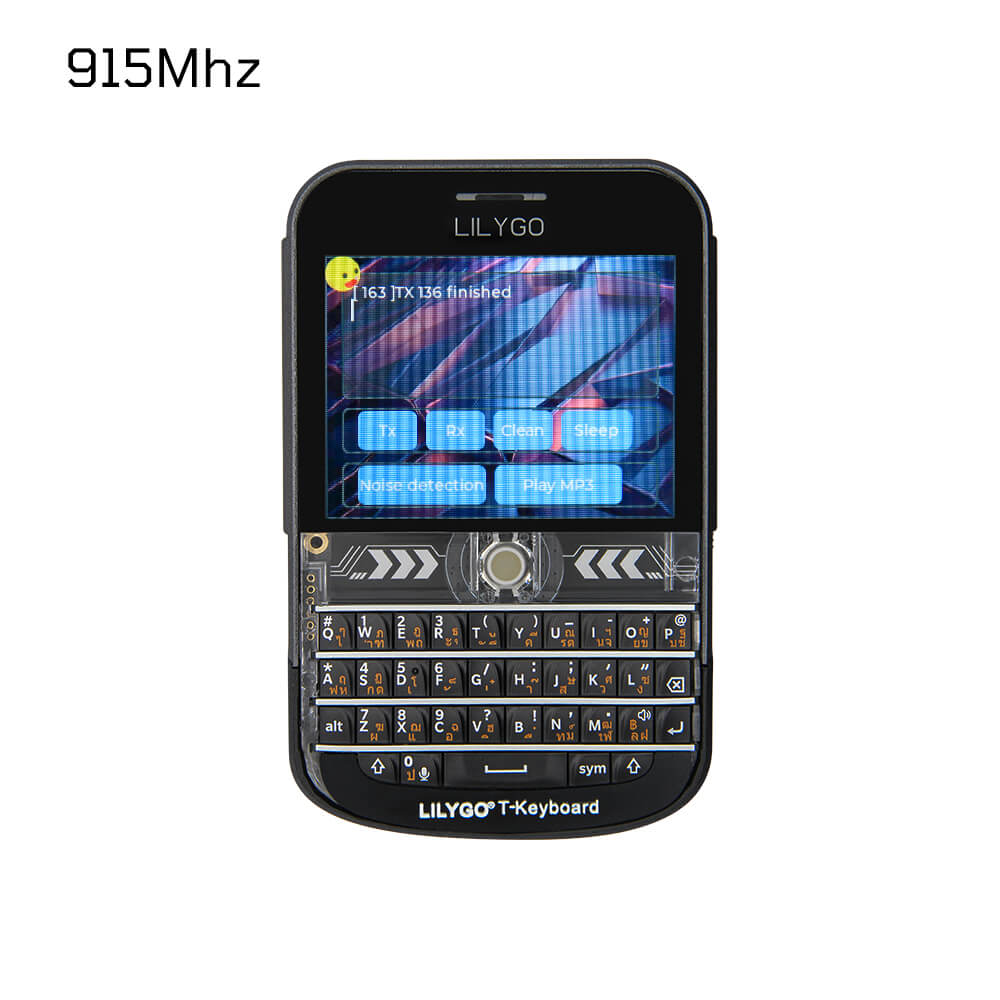

T-Deck Plus - 915 MHz

T-Deck Plus - 915 MHz

Regular price $200.00 AUD
Regular price Sale price $200.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Upgraded based on T-Deck, mainly added GPS module, and Built-in 2000 mah battery.

LilyGo Factory Firmware

Who can use

It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

Specifications

 MCU ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, Micropython
Flash 16 MB
PSRAM 8MB
Battery ADC PIN IO04
Onboard functions GPS,TF Card,Microphone,Speaker
LCD

2.8 inch ST7789 SPI Interface IPS LCD:

Resolution: 320 x 240 Full viewing angle

Transceiver

SX1262 LoRa Transceiver

Transmit power

+22dBm

Frequency Optional

433/868/915Mhz



Flash Firmware with Meshtastic UI:

  1. Connect the T-Deck Plus to your computer using a USB-C cable
  2. Turn on the T-Deck Plus by holding down the trackball button and sliding the powering button down. There will be nothing shown on the display.
  3. Visit https://flasher.meshtastic.org/
  4. Select T-Deck as the target device
  5. Enter the Konami cheat code by pressing the following buttons on your computer keyboard

    UP UP DOWN DOWN LEFT RIGHT LEFT RIGHT B A
  6. The background of the website will turn black and will allow you to select the 2.6 Pre-Release
  7. Click on Flash and make sure to do a Full Erase and Install and enable the Meshtastic UI. Select your device in the pop-up.
  8. Turn your T-Deck Plus off and on to use the new UI.
  9. Select your region and pick your name.
