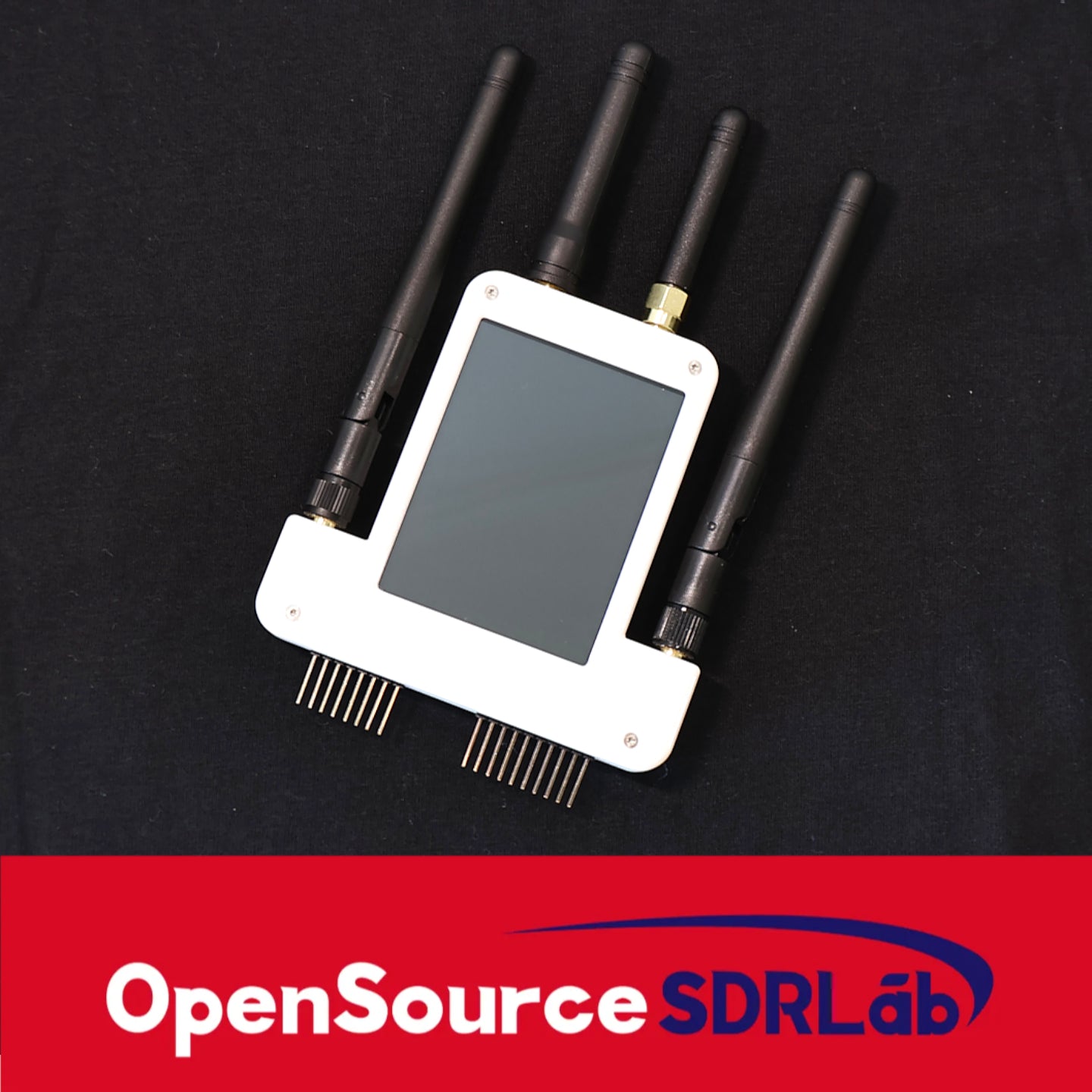

Flipper Add-On Multi-in-One WiFi-2.4/5GHz+433M+GPS ESP32C5 Module

OpenSourceSDRLab New 5G Multi in one module FlipperZero module with screen FlipperZero5G Expansion Board

External modules include:

1. 433M RF module
2. ESP32C5 (5G/2.4G) module
3. GPS module
4. 2.8-inch screen raider

What module does this product have?

1. 433M RF module: using A07 module with a power of 10dBm. When using, insert Little Dolphin, enter the Sub Ghz menu, click Advanced Settings to see the module used, and change it to external
2. ESP32C5 (5G/2.4G) module: default flashing Marauder 5G firmware, burning interface is TypeC, located on the left side of the front of the machine. Before burning, press and hold the button on the right side of the back of the machine, then insert the USB to start burning.
3. GPS module: The power supply for the GPS module can be divided into dolphin power supply and machine battery power supply. The automatic switching power supply scheme has been upgraded. Connecting the dolphin is the dolphin power supply, and disconnecting it is the machine's own power supply.

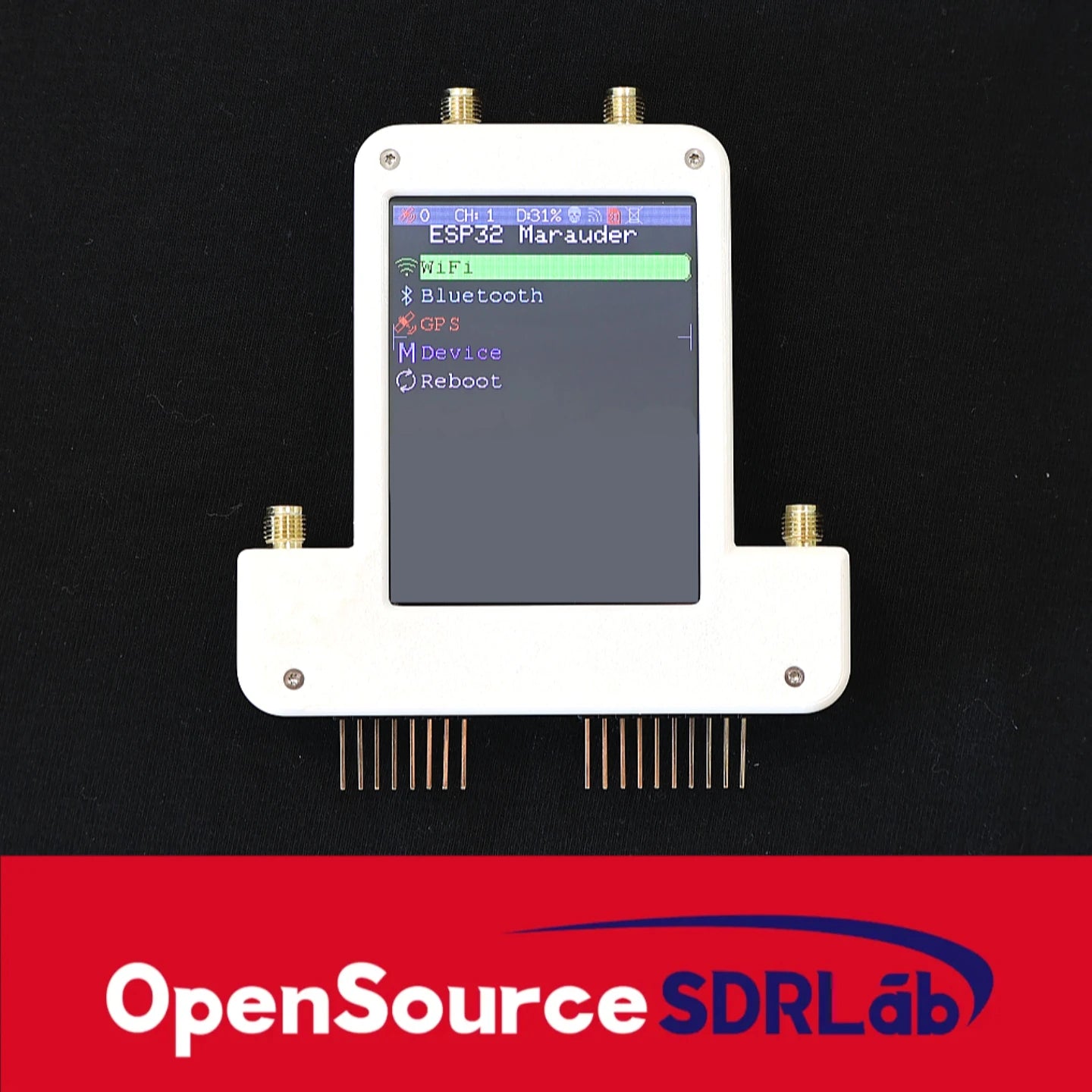

4. 2.8 "Marauder: The charging interface of the Marauder is located at the top of the front, and the charging indicator light will light up and turn off when fully charged. The GPS of the Marauder can be shared with the GPS of the Little Dolphin, automatically switching power supply. When using only screen raiders, please turn the switch on the left side of the front to the top.

Highlights and Features:

Battery capacity: 800mAh

All pins are gold-plated, and each signal pin is equipped with TVS

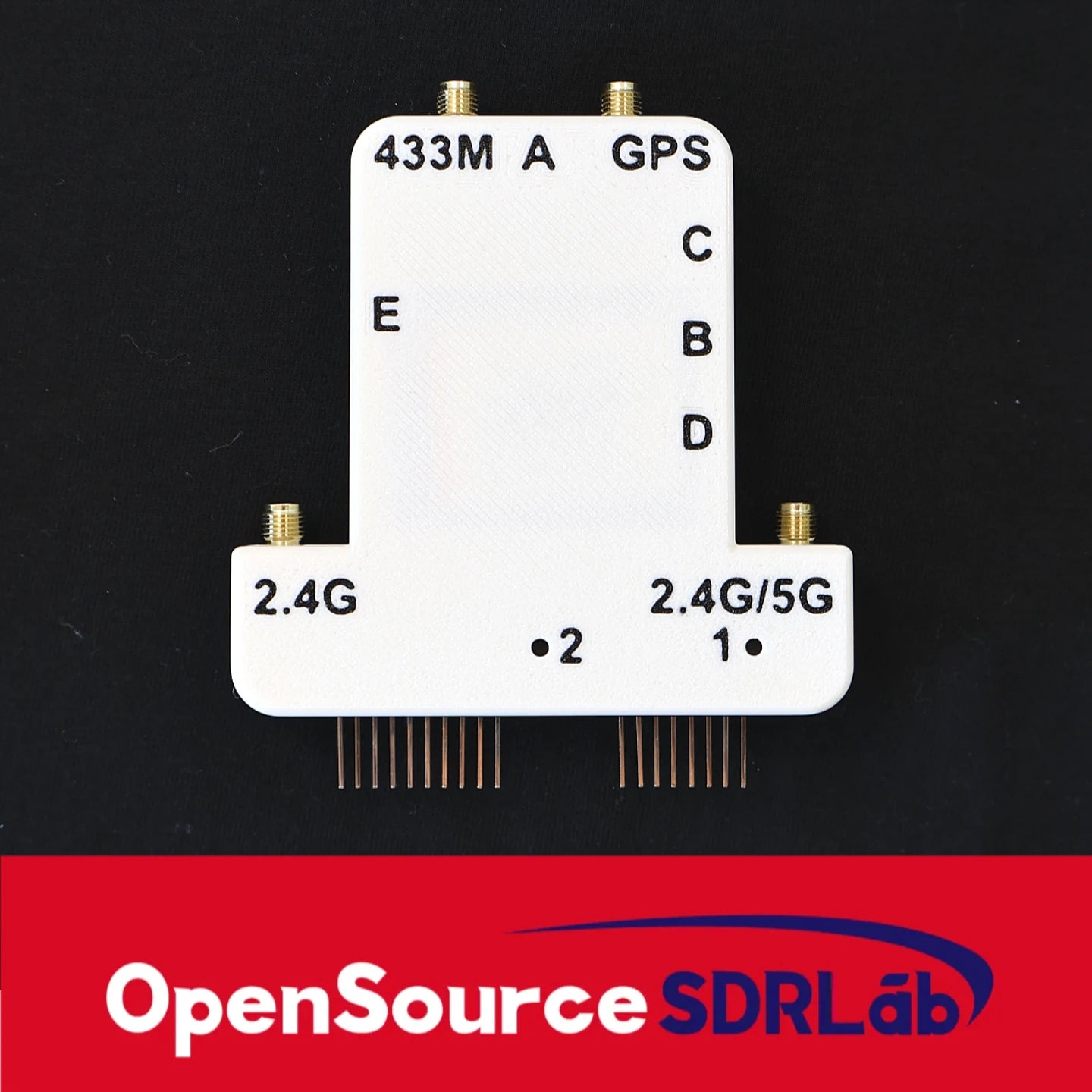

WiFi antenna 3dbi 11cm (dual frequency provided, no need to distinguish frequencies; but not the best quality),

GPS antenna 20dbi,

433M antenna 3dbi

all antennas are SMA internal pin connectors

How do I use it?

1. If you want to use the Little Dolphin GPS, go to Momentum - Protocol Settings - GPIO Pin Settings - GPS Pin Settings to 13 or 14 in the Little Dolphin menu, then go to APP-GPIO - [NAME] GPS and wait for a while to find a satellite for positioning. Our GPS antenna is located on the top left side of the front
2. If you want to use a 433M RF module, insert Little Dolphin, enter the Sub Ghz menu, click on Advanced Settings to see the module you are using, and change it to external
3. If you want to use ESP32C5 (5G/2.4G) module, insert Little Dolphin, find Monentum - Protocol Settings - GPIO Pin Settings - ESP32 Pin Change to 15, 16, then go to APP-GPIO-ESP - [ESP32] WiFiMarauder, enter it and you can start using it

If you want to use a screen raider, turn on the switch on the right to start using it.
