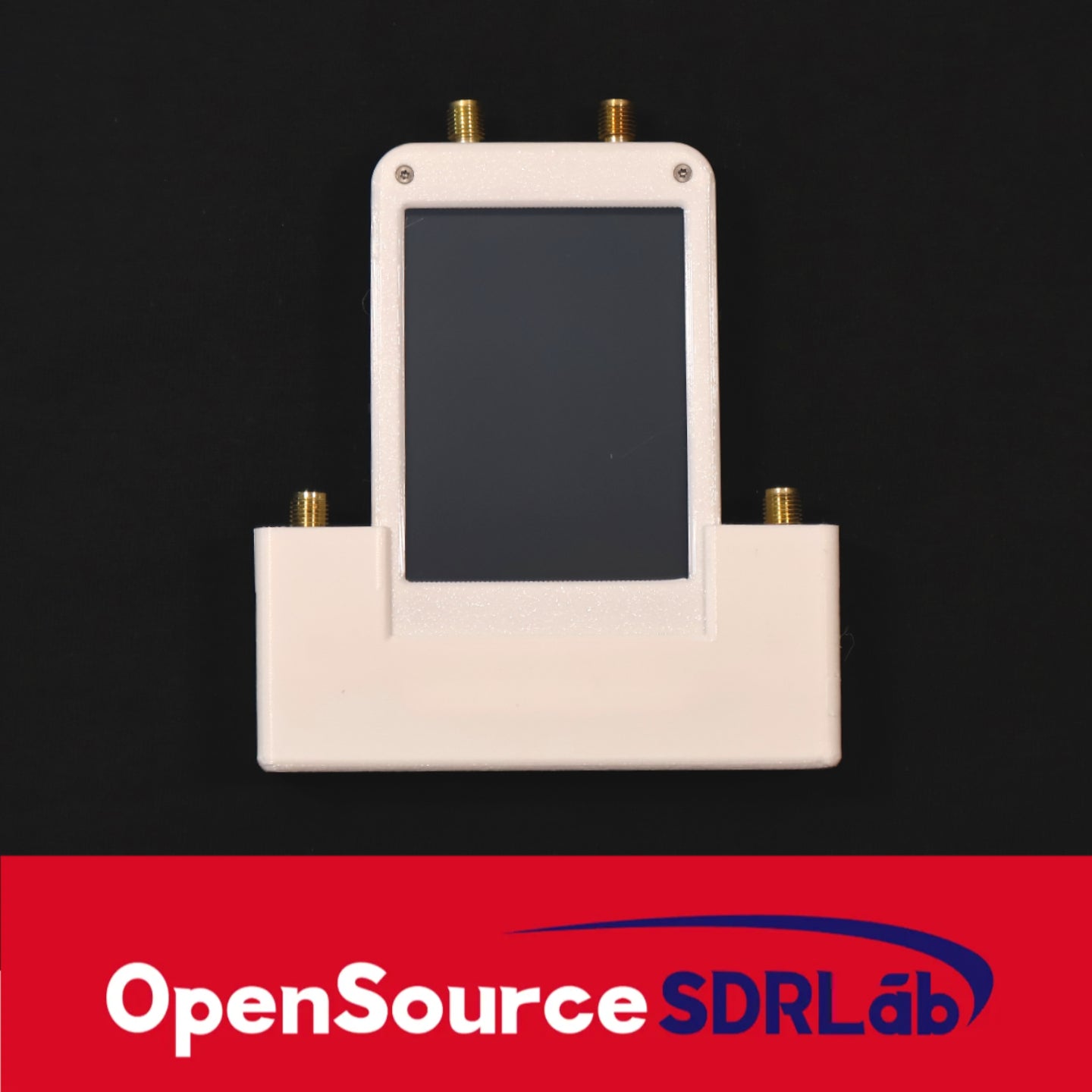

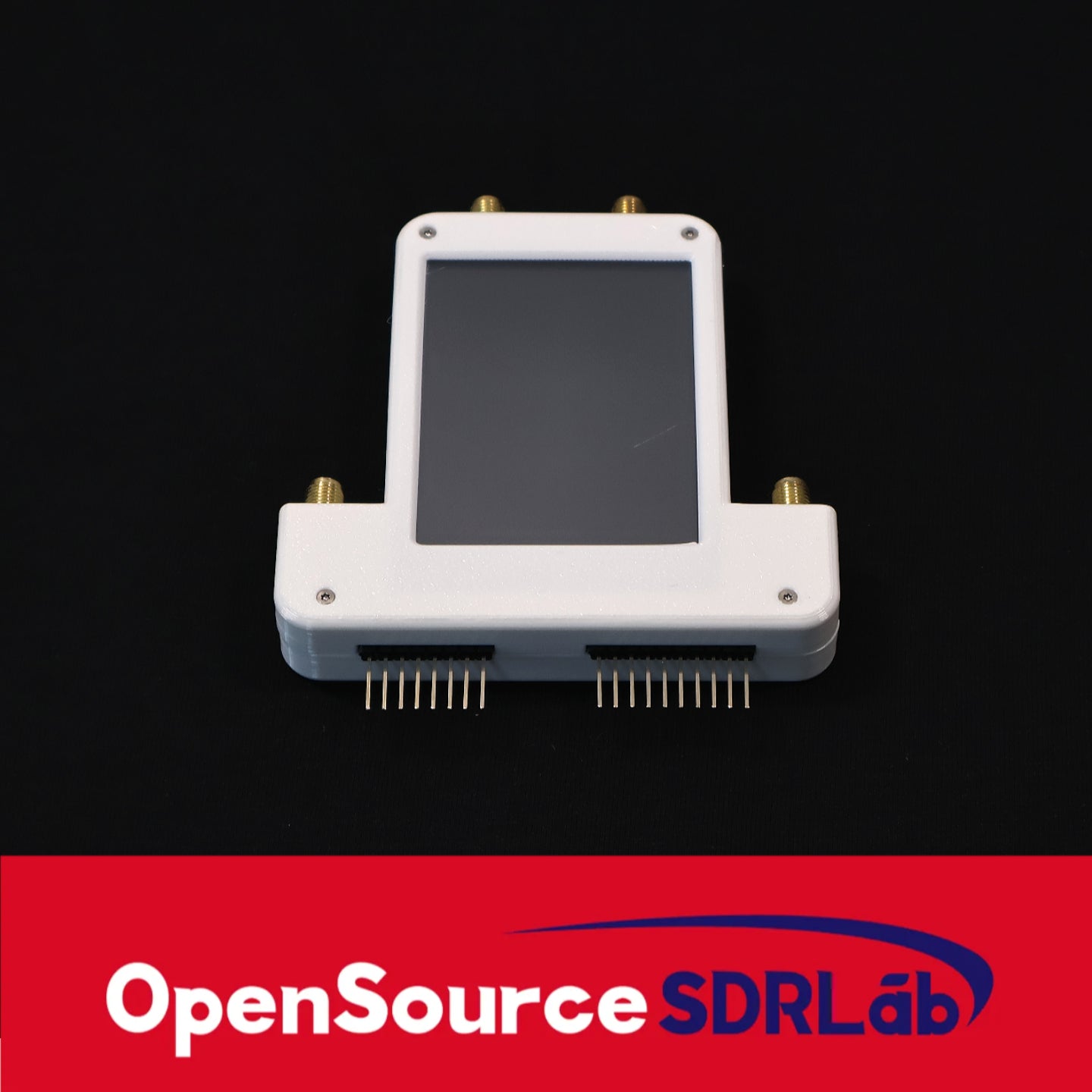

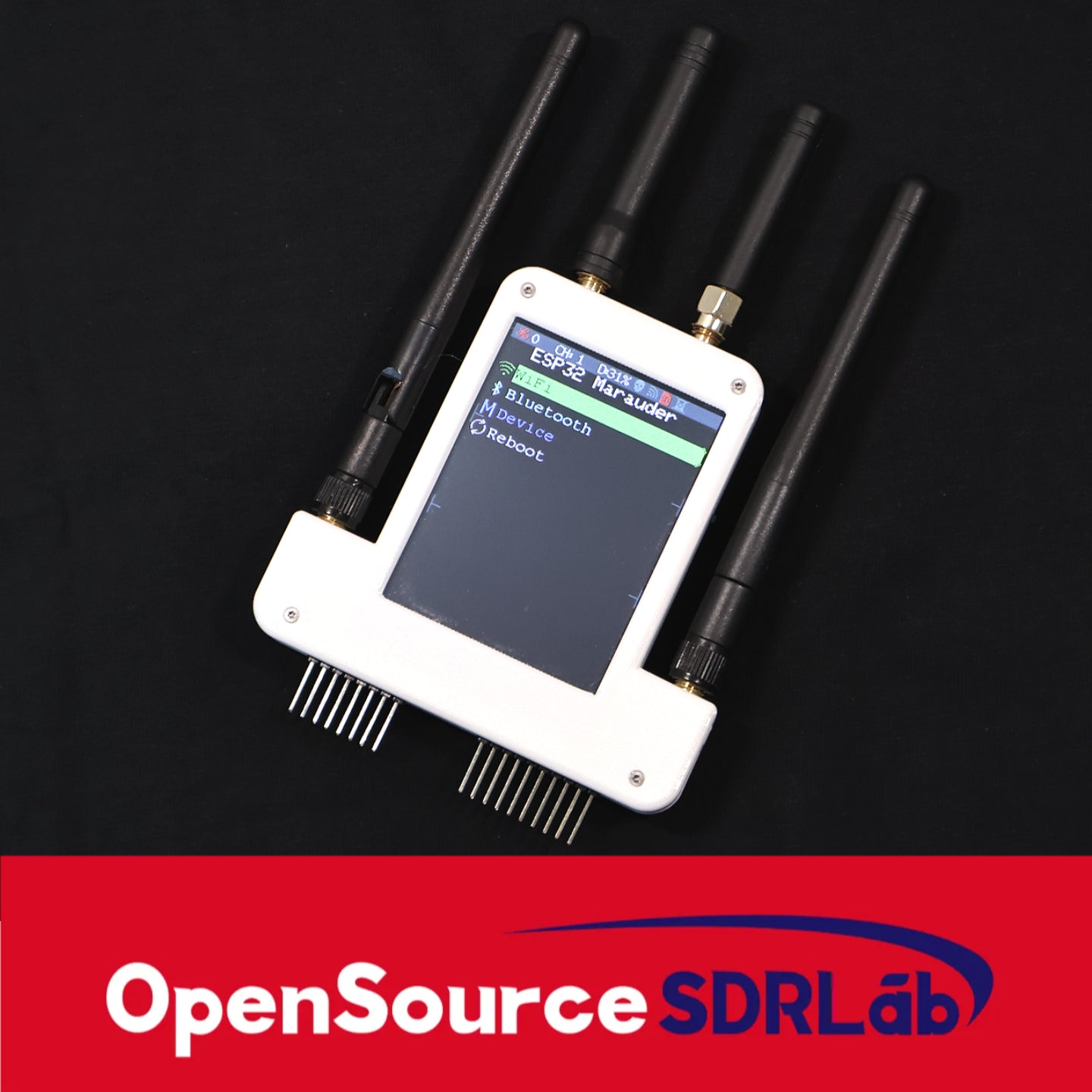

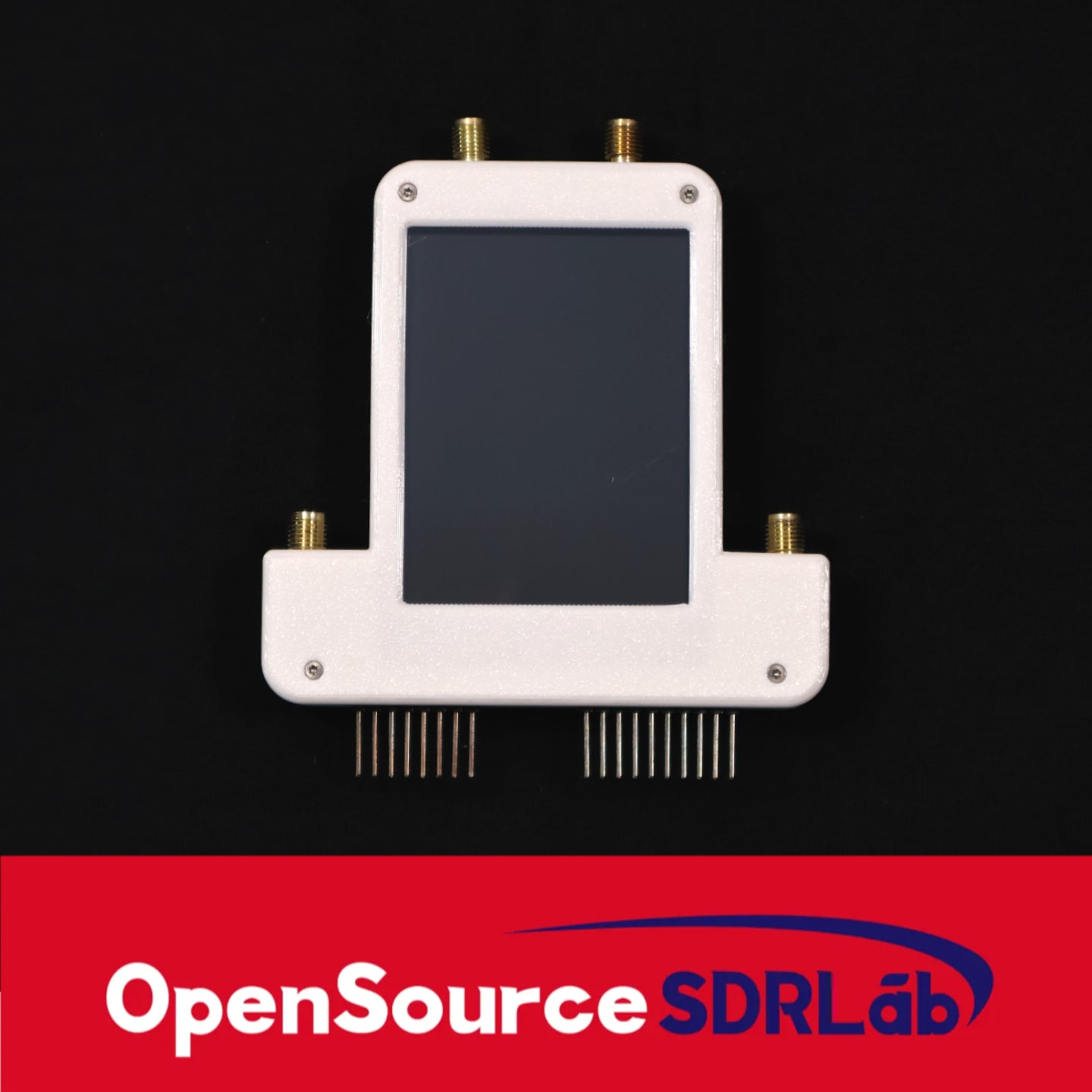

Flipper Add-On Multi-in-One WiFi+433M+GPS ESP32 Module

OpenSourceSDRLab Multi in one module FlipperZero module with screen WiFi+433M+GPS ESP32 module Flipper Zero

External modules include:

1. 433M RF module
2. ESP32S2 Predator Module
3. GPS module
4. 2.8-inch screen raider

Function Introduction:

V2 version has been completely upgraded:

GPS can be shared between dolphins and predators, automatically switching power supply for dolphins without the need for manual switching

GPS removes modularity and uses full surface mount technology, exquisite and with better signal quality, making the interior more compact

Both modules can be programmed with USB firmware, eliminating the need for a programmer (not supported by the old model)

The RF module can enter the subGHz menu and select the external module for direct use

The S2 module can be used in the WiFi Predator menu of the GPIO in the APP. The S2 module uses the 15 and 16 pins of Little Dolphin

Multi-colour shell identification is provided, and each signal pin is equipped with TVS to prevent accidental static damage. At the same time, the antenna pads have been reinforced, making them more sturdy and durable

Attention: Regarding the battery display function: Recently, the MAX17048G has increased in price by more than three times or is even out of stock. This function will no longer be added in the short term

Product Parameters:

Battery capacity: 800mAh

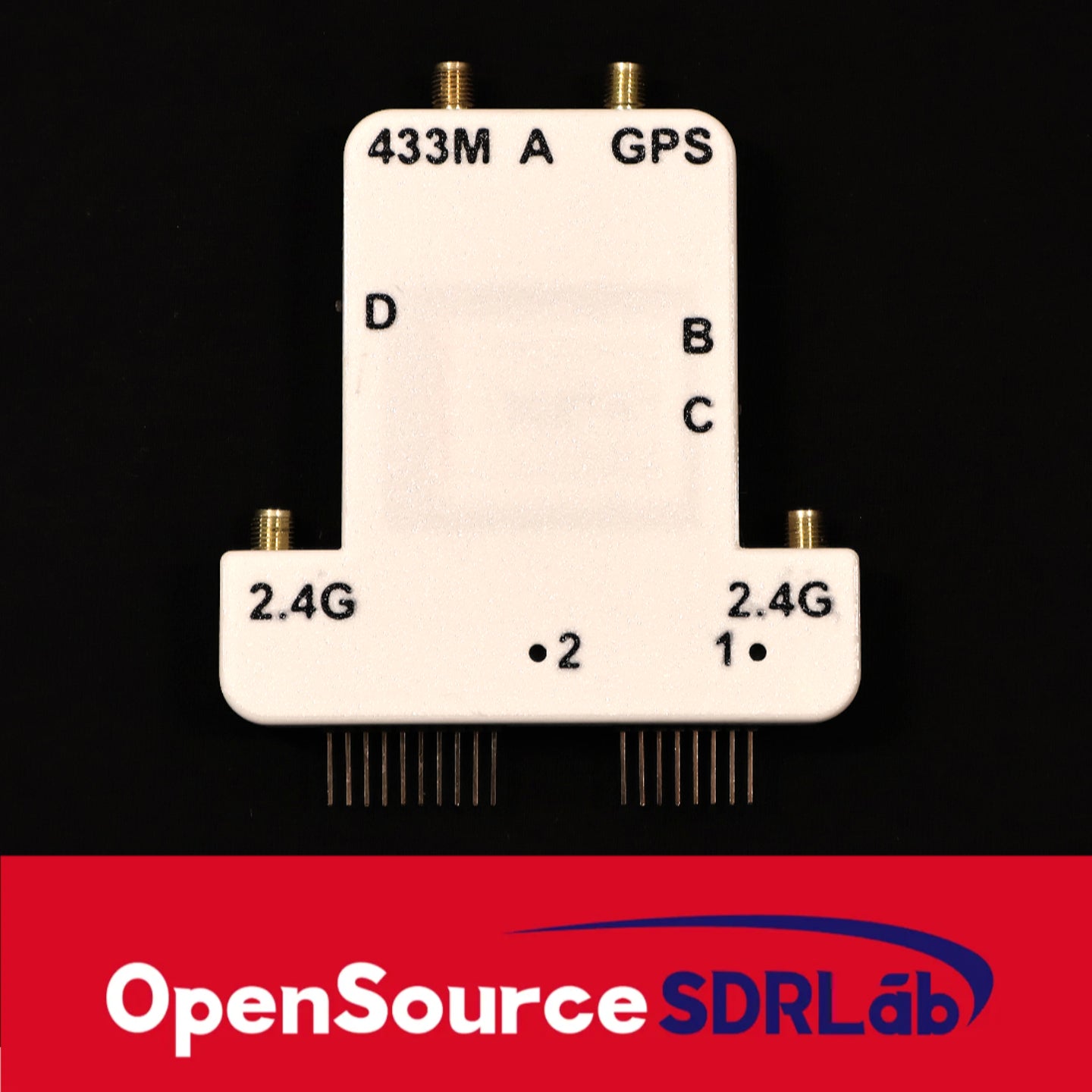

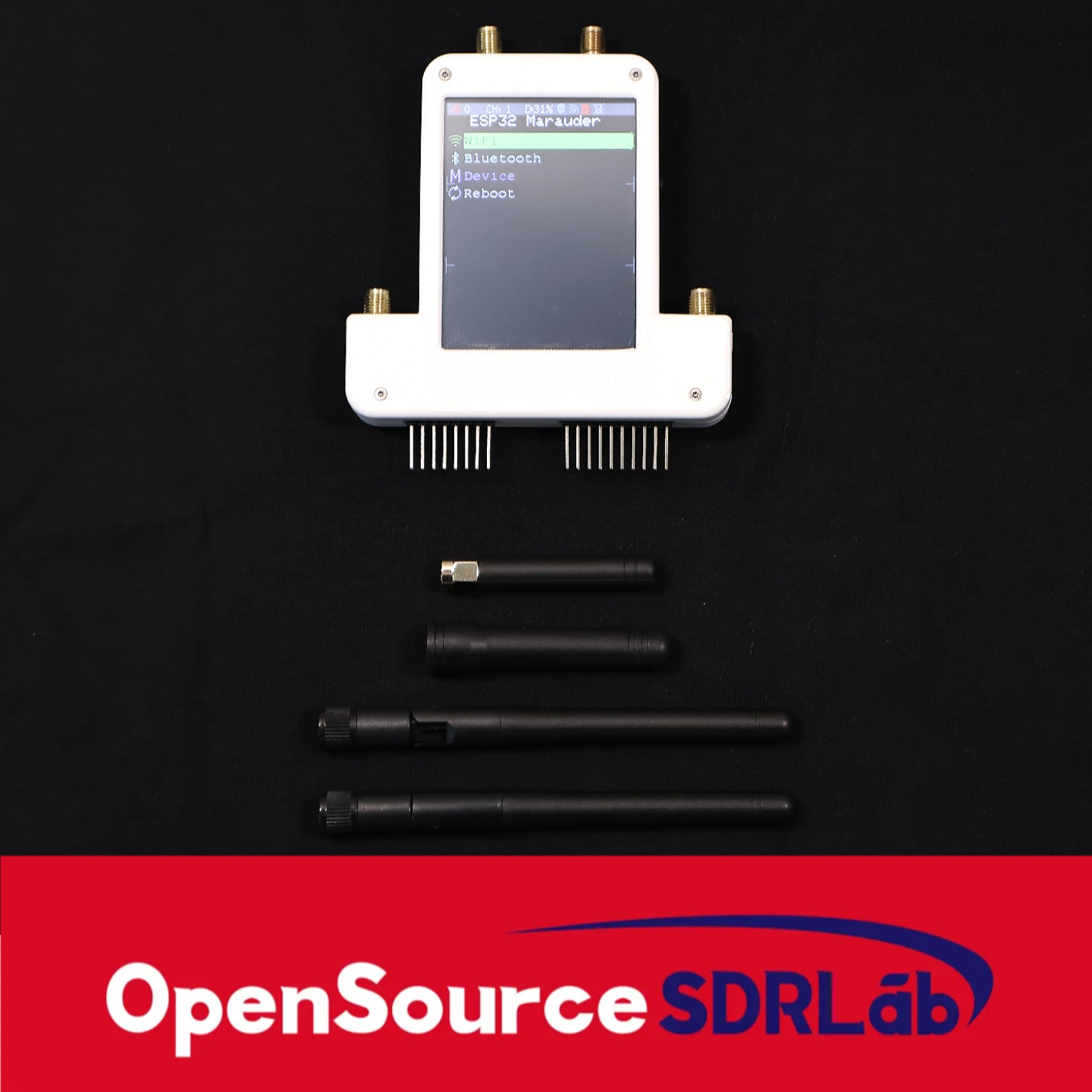

Antenna: 2.4GHz is a 3dbi antenna (the antenna shipped is the one in Figure 1, excluding Little Dolphin),
GPS is a 20dBi antenna,
433M is a 3dbi antenna

Disclaimers
For learning or signal analysis purposes only, data analysis, etc
